Industrial APO Microscope Lens

The M-Plan Apo Industrial Complex Achromatic Objective Lens offers an exceptional balance between long working distances and ultra-high numerical apertures. Specially designed for bright-field applications, this lens delivers superior optical performance at an outstanding cost-performance ratio. Available in magnifications ranging from 2X to 100X, it meets the needs of high-precision industrial and scientific applications.

Key Features:

· Infinity-Corrected Design: Engineered with an advanced infinity correction system for optimal focus and imaging.

· Flat-Field Achromatic Optics: Corrects chromatic aberration, providing sharp, true-color images with high contrast across the entire field of view.

· High Numerical Aperture: Offers excellent resolution, color fidelity, and contrast, enhancing both visual observation and micrographic imaging.

· Superior Optical Performance: Delivers high resolution with minimal variability, ensuring consistent and reliable results.

· Cost-Effective: Combines top-tier optical quality with a competitive price, making it a smart investment for industrial applications.

· Bright-Field Optimization: Tailored for bright-field microscopy, ensuring clear and accurate imaging of objects in a well-lit field of view.

This objective lens is ideal for industries requiring precision imaging and analysis, ensuring high-quality results in both observation and micrographic applications.

More...
Product Name (Magnification) Numerical aperture NA Working distance WD(mm) Focal length f(mm) Resolution R(μm) Depth of field±D.F(μm) Object field of view(mm)
M Plan Apo 2X 0.06 34 100 5 91 φ12

The M-Plan Apo Industrial Complex Achromatic Objective Lens offers an exceptional balance between long working distances and ultra-high numerical apertures. Specially designed for bright-field applications, this lens delivers superior optical performance at an outstanding cost-performance ratio. Available in magnifications ranging from 2X to 100X, it meets the needs of high-precision industrial and scientific applications.

Key Features:

· Infinity-Corrected Design: Engineered with an advanced infinity correction system for optimal focus and imaging.

· Flat-Field Achromatic Optics: Corrects chromatic aberration, providing sharp, true-color images with high contrast across the entire field of view.

· High Numerical Aperture: Offers excellent resolution, color fidelity, and contrast, enhancing both visual observation and micrographic imaging.

· Superior Optical Performance: Delivers high resolution with minimal variability, ensuring consistent and reliable results.

· Cost-Effective: Combines top-tier optical quality with a competitive price, making it a smart investment for industrial applications.

· Bright-Field Optimization: Tailored for bright-field microscopy, ensuring clear and accurate imaging of objects in a well-lit field of view.

This objective lens is ideal for industries requiring precision imaging and analysis, ensuring high-quality results in both observation and micrographic applications.

More...
Product Name (Magnification) Numerical aperture NA Working distance WD(mm) Focal length f(mm) Resolution R(μm) Depth of field±D.F(μm) Object field of view(mm)
M Plan Apo 2X 0.13 45 90 2 14 φ4.8
Infinity Corrected LWD Microscope Objectives3
GU Optics has launched 2x, 5x, 10x, 20x, 50x and 100x long working distance microscope objectives, its spectral wavelength range is 400-700nm. This objective adopts Plan Apochromatic Designs, which can correct red, blue and yellow light. It has the characteristics of Ultra-Long Working Distances and Large Numerical Aperture. These objectives are widely used in bright field inspection, education and scientific research.

Product characteristics
1. Spectral wavelength range is 400-700nm;
2. Adopts Plan Apochromatic Designs, can correct red, blue and yellow light;
3. Ultra-Long Working Distances and Large N.A.;
More...
Product Name (Magnification) Numerical aperture NA Working distance WD(mm) Focal length f(mm) Resolution R(μm) Depth of field±D.F(μm) Object field of view(mm)

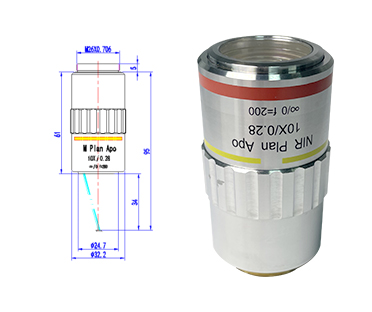

M Plan Apo 10X 0.28 34 20 1 3.5 φ2.4
Infinity Corrected LWD Microscope Objectives4
GU Optics has launched 2x, 5x, 10x, 20x, 50x and 100x long working distance microscope objectives, its spectral wavelength range is 400-700nm. This objective adopts Plan Apochromatic Designs, which can correct red, blue and yellow light. It has the characteristics of Ultra-Long Working Distances and Large Numerical Aperture. These objectives are widely used in bright field inspection, education and scientific research.

Product characteristics
1. Spectral wavelength range is 400-700nm;
2. Adopts Plan Apochromatic Designs, can correct red, blue and yellow light;
3. Ultra-Long Working Distances and Large N.A.;
More...
Product Name (Magnification) Numerical aperture NA Working distance WD(mm) Focal length f(mm) Resolution R(μm) Depth of field±D.F(μm) Object field of view(mm)

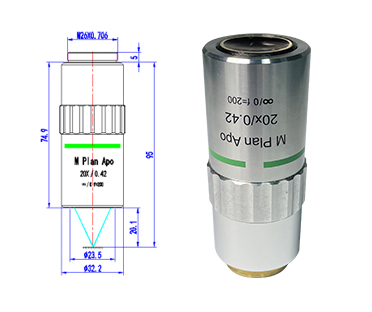

M Plan Apo 20X 0.42 20.1 10 0.7 1.6 φ1.2

The M-Plan Apo Industrial Complex Achromatic Objective Lens offers an exceptional balance between long working distances and ultra-high numerical apertures. Specially designed for bright-field applications, this lens delivers superior optical performance at an outstanding cost-performance ratio. Available in magnifications ranging from 2X to 100X, it meets the needs of high-precision industrial and scientific applications.

Key Features:

· Infinity-Corrected Design: Engineered with an advanced infinity correction system for optimal focus and imaging.

· Flat-Field Achromatic Optics: Corrects chromatic aberration, providing sharp, true-color images with high contrast across the entire field of view.

· High Numerical Aperture: Offers excellent resolution, color fidelity, and contrast, enhancing both visual observation and micrographic imaging.

· Superior Optical Performance: Delivers high resolution with minimal variability, ensuring consistent and reliable results.

· Cost-Effective: Combines top-tier optical quality with a competitive price, making it a smart investment for industrial applications.

· Bright-Field Optimization: Tailored for bright-field microscopy, ensuring clear and accurate imaging of objects in a well-lit field of view.

This objective lens is ideal for industries requiring precision imaging and analysis, ensuring high-quality results in both observation and micrographic applications.

More...
Product Name (Magnification) Numerical aperture NA Working distance WD(mm) Focal length f(mm) Resolution R(μm) Depth of field±D.F(μm) Object field of view(mm)

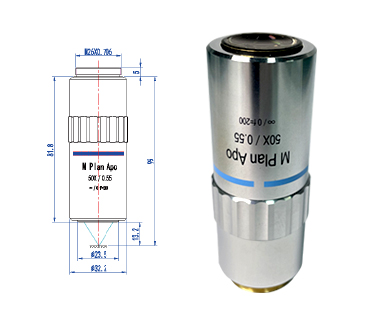

M Plan Apo 50X 0.55 13.2 4 0.5 0.9 φ0.48

The M-Plan Apo Industrial Complex Achromatic Objective Lens offers an exceptional balance between long working distances and ultra-high numerical apertures. Specially designed for bright-field applications, this lens delivers superior optical performance at an outstanding cost-performance ratio. Available in magnifications ranging from 2X to 100X, it meets the needs of high-precision industrial and scientific applications.

Key Features:

· Infinity-Corrected Design: Engineered with an advanced infinity correction system for optimal focus and imaging.

· Flat-Field Achromatic Optics: Corrects chromatic aberration, providing sharp, true-color images with high contrast across the entire field of view.

· High Numerical Aperture: Offers excellent resolution, color fidelity, and contrast, enhancing both visual observation and micrographic imaging.

· Superior Optical Performance: Delivers high resolution with minimal variability, ensuring consistent and reliable results.

· Cost-Effective: Combines top-tier optical quality with a competitive price, making it a smart investment for industrial applications.

· Bright-Field Optimization: Tailored for bright-field microscopy, ensuring clear and accurate imaging of objects in a well-lit field of view.

This objective lens is ideal for industries requiring precision imaging and analysis, ensuring high-quality results in both observation and micrographic applications.

More...
Product Name (Magnification) Numerical aperture NA Working distance WD(mm) Focal length f(mm) Resolution R(μm) Depth of field±D.F(μm) Object field of view(mm)

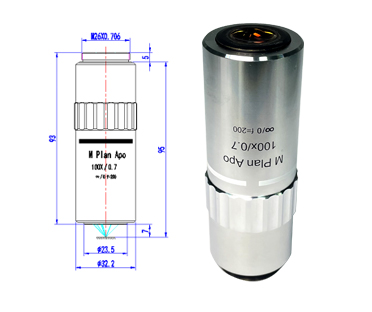

M Plan Apo 100X 0.7 7 2 0.4 0.6 φ0.24
